E-REON has reached its target production throughput of 50 units per day for its latest compact broadband RF power-amplifier module.
Developed for demanding broadband systems, the amplifier delivers 60 W of RF output power with a minimum gain of 25 dB maintained across the complete 2.0-2.6 GHz operating range.
Compact broadband performance

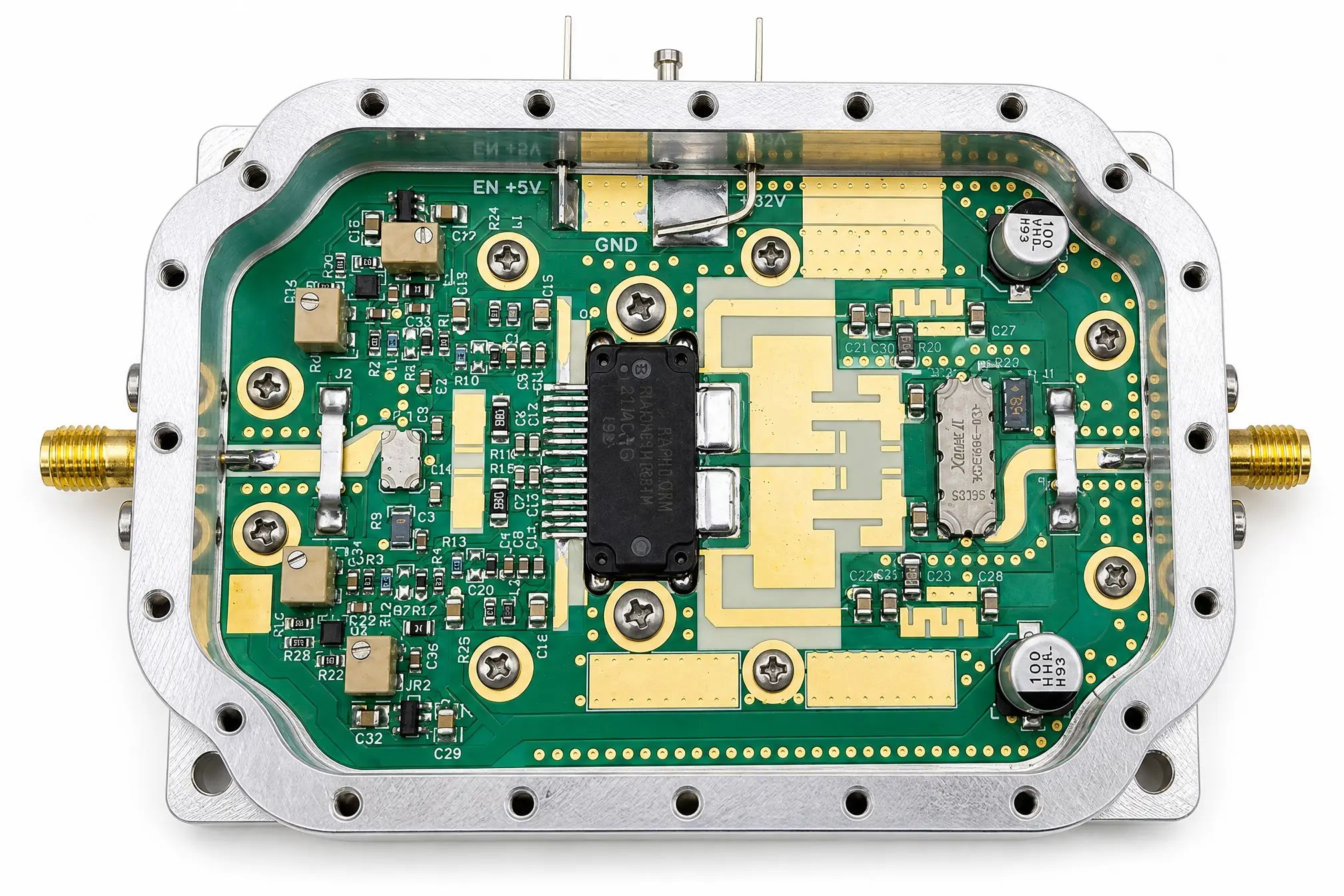

The platform combines broadband RF performance with high efficiency and a low-SWaP mechanical format. Its connectorised enclosure and straightforward power and control interface are intended to simplify integration into RF front ends and larger subsystem assemblies.
Principal characteristics include:
- 2.0-2.6 GHz operating frequency range
- 60 W RF output power
- minimum 25 dB gain across the operating band
- compact, integration-ready mechanical construction
- production throughput of 50 units per day
Application areas
The broadband coverage and compact format support integration into several types of RF system, including:
- authorised counter-UAV, electronic-warfare and RF security platforms
- radar emulation and RF test equipment
- aerospace and satellite telemetry systems
- mobile satellite services and broadband telecommunications equipment

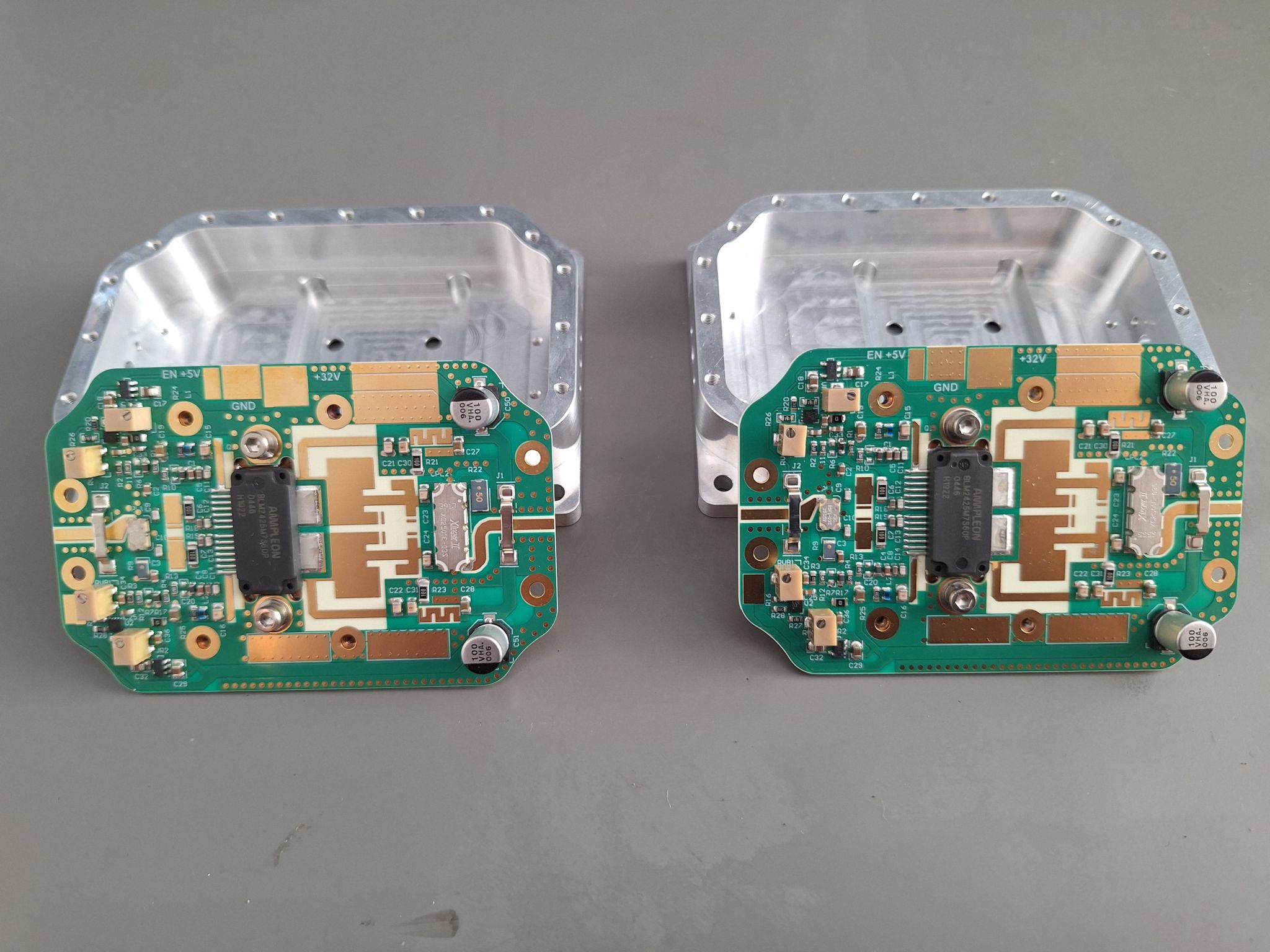

Reaching the target production rate demonstrates that the design has moved beyond prototype performance into repeatable assembly. RF circuitry, mechanical packaging and production processes have been brought together in a platform suitable for integration into larger customer systems.
For integration and engineering enquiries, contact info@e-reon.com.
